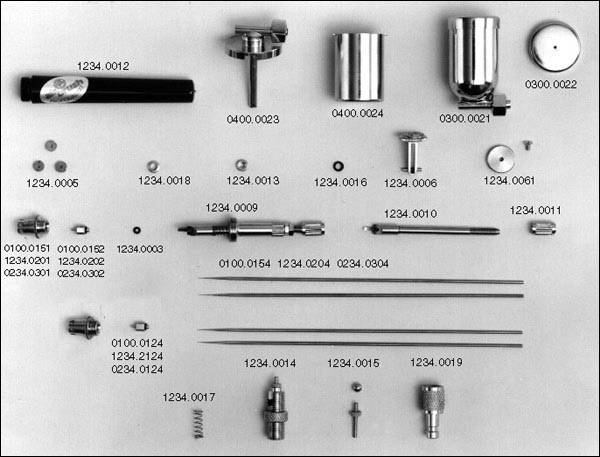

spare parts

Air cap (1) 0.20 mm 1234.0201
Nozzle (2) 0.20 mm 1 234.0202
Nozzle washer (3) 1234.0003
Needle (4) 0.20 mm, double pack 1234.0204
Nozzle assembly 0.20 mm:
1 Air cap, 1 Nozzle, 2 Needles 1234.2124
Needle gland washer, Set (5) 1234.0005
Lever assembly (6) 7234.0006
Lever cap with screw (6a) 1234.0061
Needle control assembly (9) 7234.0009
Needle sleeve (10) 1234.0010
Needle securing screw (77) 1234.0011
Plastic handle (12) 1234.0012
Needle packing gland (13) 1234.0013
Air-valve assembly (14) 1234.0014
Air-valve stem with ball-bearing (15) 1234.0015
Air-valve washer (16) 1234.0016
Air-valve spring (17) 1234.0017
Air-valve screw (18) 1234.0018
Air-line adaptor (19) 1234.0019
Paint cup for Bl hinged, assembly (21) 0300. 0021
Lid for paint cup (above) (22) 0300.0022
Suction lid for C I hinged, without cup (23) 0400.0023
Paint cup (for above) (24) 0400.0024
